Medical Coil Winding Machine Solutions

As the leading provider of cutting-edge solutions to the intravascular catheter manufacturing industry, SYNEO proudly showcases the micro-coil winding technology of its sister company, Engineering By Design (EBD). The multi-filar and single-filar coil winding technologies are designed to wind micro coils for minimally invasive medical devices. These coil winders can wind coils down to .001″ diameter wire on a .010″ mandrel using our innovative closed-loop filar tension control system. The medical-grade precision of our machines allows for the advanced production of catheters.


Learn more or request a quote today!

Multi-Filar Coil Winding

The multi-filar coil winder machine uses a camera vision system to wind fine filaments around a spinning mandrel and produce multi-filar micro coils with up to 4 filars.


Single-Filar Coil Winding

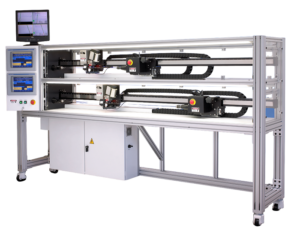

EBD 503  Single Vision Coil Winder offers precision micro coil winding from a large DIN 80 supply spool. By improving the accuracy of all controlled parameters, this machine can increase productivity through reduced rejects and faster wind speeds.
