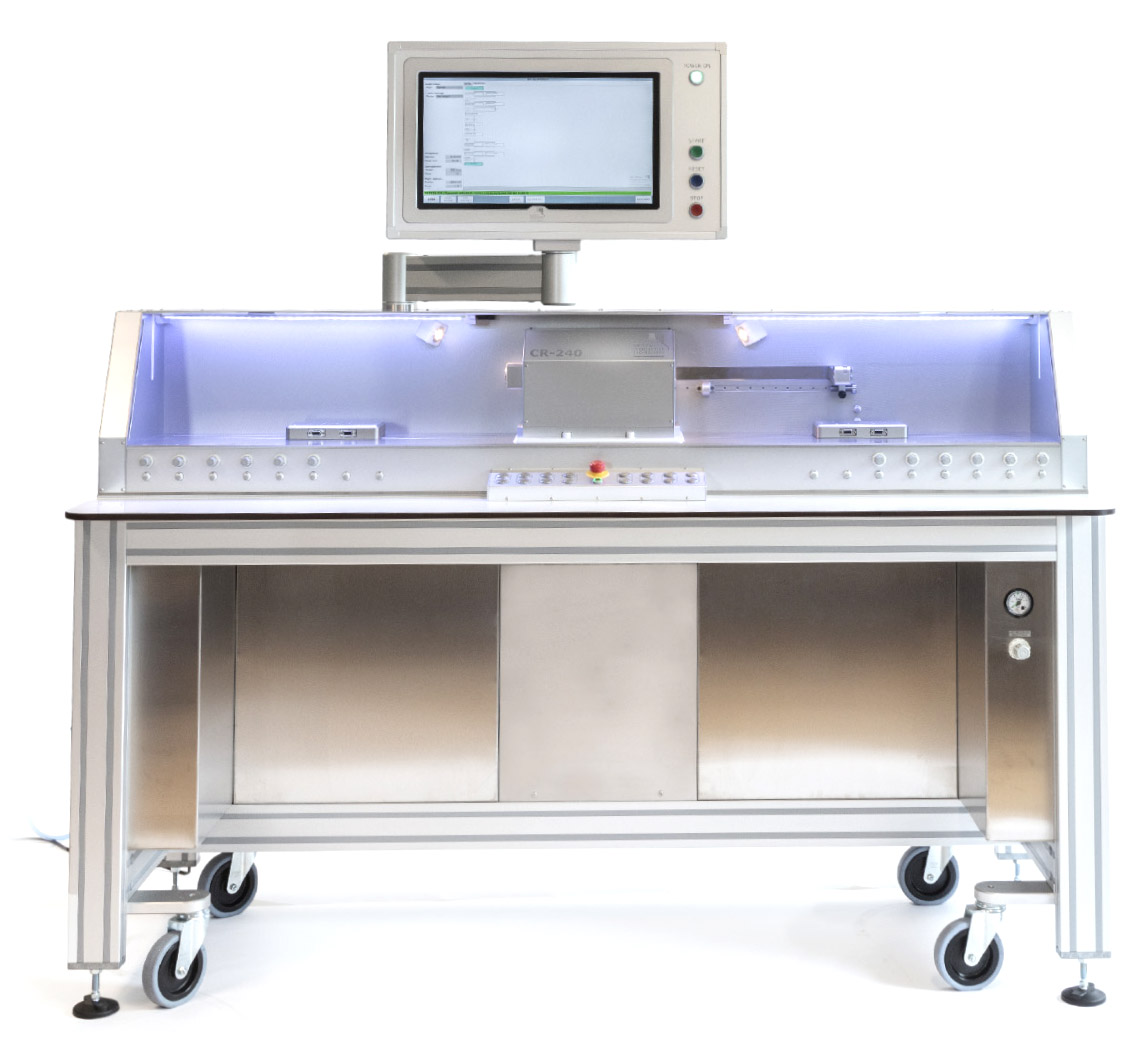

 The CR-240-FSCP Flexible Stent Crimping Platform is developed for the crimping and transfer on or into the delivery system. Both balloon expandable and self- expandable stents up to 220 mm length can be handled.

Key Features

  • Flexible Process Interface
  • Servo controlled stent crimping head with Zero Gap technology
  • Quick exchangeable crimping head
  • 2 platforms for customized parts on holding and pushing stents and mandrels
  • The CR-240-FSCP is built with a very high-quality benchmark resulting in a stable and robust design with minimal cost of ownership.
  • The CR-240-FSCP stent crimper can be easily calibrated using the one-point automatic diameter calibration function built into the system. Calibration in seconds.
  • • Large 19” full color touch screen user interface for easy overview of the machine behavior and managing of the FPI

Technical Specs

Stent crimping length

240 mm quick exchange crimphead

Stent type

All stent types (except DES)

Maximum diameter

36 mm (optionally larger sizes possible)

Heating / Cooling

Optional to -20C / +90C

Minimum closing diameter

0.1 mm (software limit)

Crimp head control

Servo controlled position / force

Diameter accuracy

+/- 0.02 mm @ 100 N

Maximum crimp force

1250 N radial. Dynamic Diameter Compensation (DDC)

Crimping speeds

0.1 mm/s – 10 mm/s

Maximum transfer force

+/- 500 N with loadcell measurement

Platform connections

8x air connection (6 mono stable valves and 2 servo valves)+ 3x input (24VDC) + 3x output (24VDC)


19” colour touch panel

Control software

Flexible Process Interface (FPI) software for your own cycle development.(this MPT Europe BV designed software is also used on the BFM seties balloon forming machines)

Real time graphs with zoom options

platform force left platorm force right

crimphead diameter

crimphead force





Required air pressure

7 bar minimum

Power supply

115 / 240VAC / 0.5kW

Safety systems

Light curtain with intuitive operator feedback system
