Reflow Clam Shell

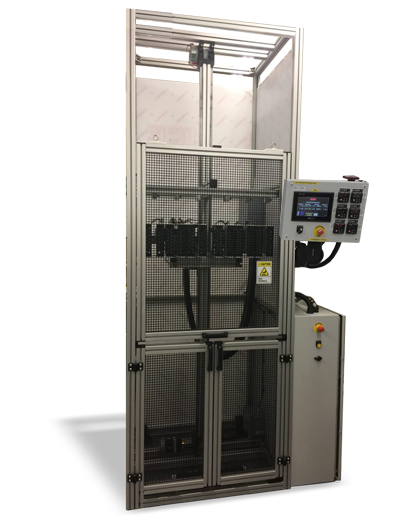

The CT Reflow Clam machine differs from the CT Reflow Chamber machine because of its ability to be programmed to skip over various parts of a catheter assembly, therefore removing heat from designated parts of the catheter.

Description

The CT Reflow Clam uses a split die design that opens and closes around the needed parts where heat is necessary. This is especially advantageous should a catheter assembly have sensitive sensors or other materials in it where heat should not be applied. Additional features can be added to the Clam Shell Chamber including: Operator safety precautions, Ease conversion to CT STRETCHER, Loading elevators for operators to load assemblies at lower levels.

Specifications

  • Chamber Options:
    • 8 or 10 Chambers
  • Height Options:
    • 89″, 100″, 108″, 120″, 144″
  • 5″ Chamber length (STD size)
  • Chambers interchangeable – hot or cold
  • 2 pins per screw
  • Per changeover (less than 10 mins)
  • Low maintenance required
  • Crated weight 900-1000 lbs (STD)
  • Clam shell 1200 lbs. 3 phase
  • 208-240 VAC 30 AMP
  • Air pressure – minimum 90 PSI
  • Easy setup

Options

  • High Temp Package
  • Loading Elevator
  • Light Curtain
  • Safety Pull Cord
  • Door Interlock
  • Replacement PTFE
  • Replacement Chambers:
    • .200 – .375 Dia
    • .187 Dia
    • .376 – .500 Dia
    • .125 Dia
