Automated Catheter Balloon Folder - PTF-120-A
Description

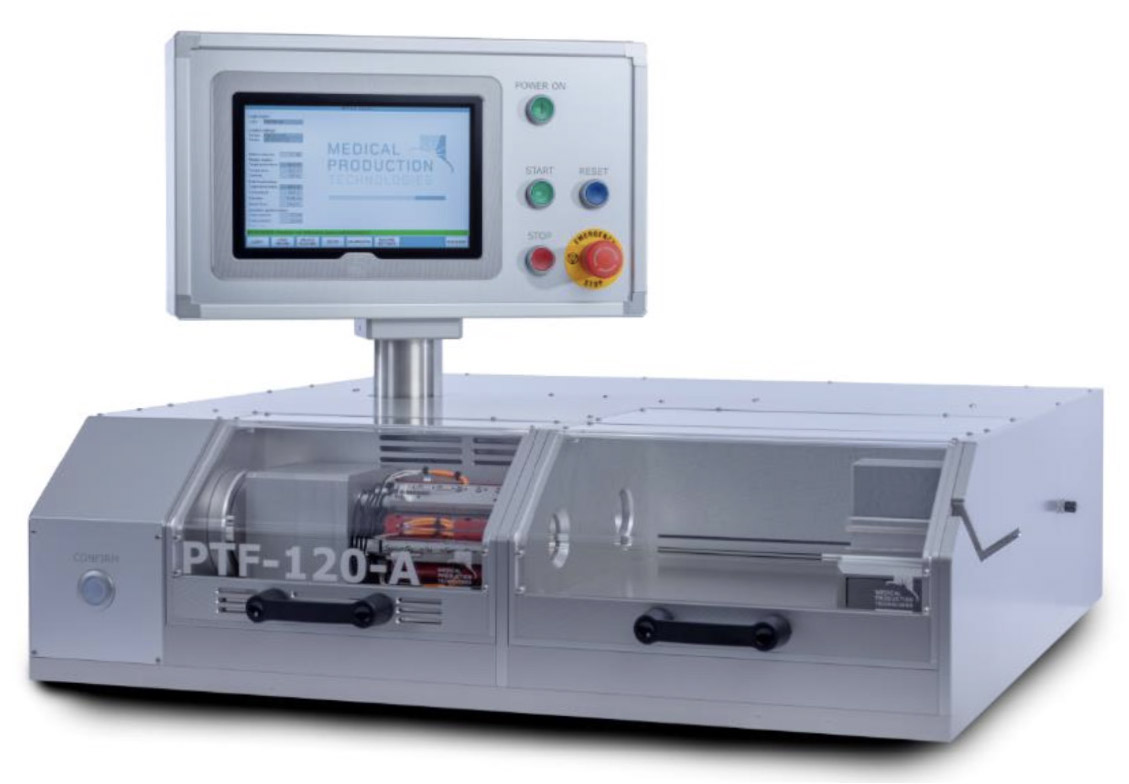

The PTF-120-A is a fully automated machine and can pleat and fold balloons with a length of approx. 100 mm. The balloon products are clamped on a stable product table with automatic positioning using stepper motors.
Specifications
- 10” color touch panel interface with parameter setting and recipe control.
- Servo controlled zero gap fold head with stainless tool steel blades and high-wear resistant low friction coating.
- Innovative design for quickly exchanging the pleater setup from 3- ,4- ,5- or 6-pleats.
- The PTF-120-A is built with a very high-quality benchmark resulting in a stable and robust design with minimal cost of ownership.
- Easy to use user interface software with recipe control. Barcode scanners support as standard.
- Fold head heating is standard and optionally the pleater modules can be fitted with a heating system.
- The design is optimized for use in cleanrooms and can be very easily wiped and cleaned due to the smooth and closed surfaces.
Technical Specs
Balloon pleater & fold head size | 120 mm length maximum opening 30 mm |
Maximum balloon length | Approx. 100 mm (depending on cone angles) |
Number of pleats | 3, 4, 5 or 6 pleats with pre-shape |
Heating on the pleaters | Optional. Maximum temperature 90 °C |
Heating on the fold head | Standard. Maximum temperature 90 °C |
Fold head control | 0.1 mm – 30mm servo controlled +/- 0.02 mm @ 100N accuracy Dynamic Diameter Compensation (DCC) available 1 point fully automated diameter calibration 1000 N radial force max. |
Pleat head control | Servo controlled with CW/CCW pleater option |
Product inflation/deflation | 1 port (max. 6 bar / minimum -0.8 bar) with hub connector Footswitch activation on the product clamp unit |
GUI | 10” colour touch panel |
Control software | Recipe based Password levels (operator, engineer, calibrator) Remote support option |
Ethernet | Yes |
USB | Yes |
Required air pressure | 7 bar minimum |
Power supply | 115 / 240 VAC / 0.8 kW |
Safety systems | Covers with coded magnet and safety PLC circuit |
