PT-3070: Hydraulic Pressure Testing Machine

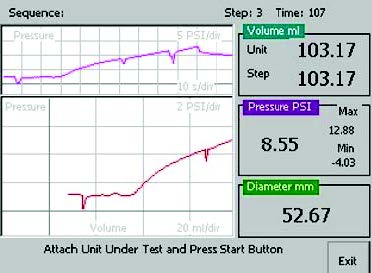

The PT-3070 is ideally suited for testing small plastic pressure retaining components such as welded or bonded plastic components and tubing assemblies that are typically encountered in many disposable medical devices, i.e. balloon catheters. Tubing, small valves, fittings, balloons, etc. can be tested for burst, leak, fatigue, pressure or volume compliance and flow resistance. The unit can measure and plot pressure and volume compliance of elastomeric balloons, measure inflation and deflation times of balloon catheters, such as PTCA and PTA, and determine stent deployment characteristic, etc.

Key Features

  • Simple test setup and operation
  • Small footprint

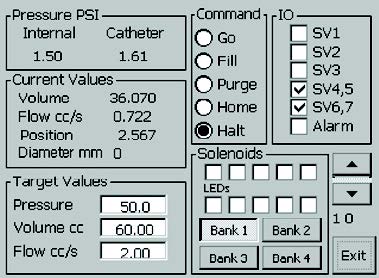

  • Tilting color touchscreen for data input
  • Up to 100 programmable test sequences
  • 0-1000 psi pressure range (0-2000 psi optional)
  • Precise control of pressure, volume & flow rate
  • Uses distilled water as pressure media
  • Automatic system purge and fill
  • Printer port and RS-232 communication port
  • Capable of high flow rates, up to 1000 cc of continuous volume delivery
  • Optional multi-port manifolds for simultaneous testing of 5 to 20 devices
  • Interfaces with Compliance Test Fixture to measure balloon diameter during testing
Request A Quote

Specifications

Dimensions:10” W x 12.5” H x 18.5” D
Weight:19.5 Kg (43.0 lbs)
Electrical Power:100/110/220/240 VAC
50 or 60 Hz, 1000 W
Air Supply:100 psi (0.7 Mpa) dry filtered air
Output Pressure Range:1.0 to 1000 psi
(0.0068 13.6 Mpa)
(2000 psi optional)
Output Volume Range:0.002 cc to 1000 cc
Output Flow Rate Range:0.2 to 10 cc/s
Pressure Accuracy:1.0 psi (6.8 Pa)
Pressure Resolution:0.1 psi (0.68 Pa)
Volume Accuracy:0.02 cc
Volume Resolution:0.001 cc
Flow Rate Accuracy:0.06 cc/s
