Catheter Mandrel Puller, Mandrel Puller/Stretcher

Automatic Mandrel Pulling Equipment

CT MANDREL PULLER is a simple machine designed to pull out mandrels from any type of catheter tubing. This machine can be equipped with either Servo or Pneumatic controls depending on operational needs. We have several different ways to grip the mandrels and offer mandrel handling after the unit is completed.

Description

Using R&D Engineering as a resource, we’re able to identify the best way to pull the mandrel from the unit, and can be as simple as loading and unloading the machine with the assembly. Various machines can be customized from 1 up unit to a 10 up unit. We are equipped to identify the hardest spot and design the most appropriate gripping issues and turn them around to find the “Sweet Spot.” This will give the ability to break the unit free from the mandrel, thereby pulling the mandrel with greater ease.

Specifications

  • Pulls solid or stretch materials out of a finished units
  • Equipment can be fabricated to meet length and diameter requirements
  • Standard machines pull 56” and 89” lengths
  • Pull speeds and other items can be programmed or set to a specific speed
  • Power: 120 VAC/20 AMP supply (typically)
  • Multiples can be pulled at one time on a custom basis

Options

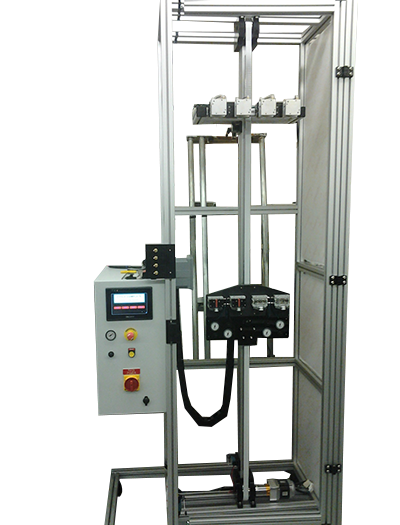

  • Horizontal vs Vertical options available

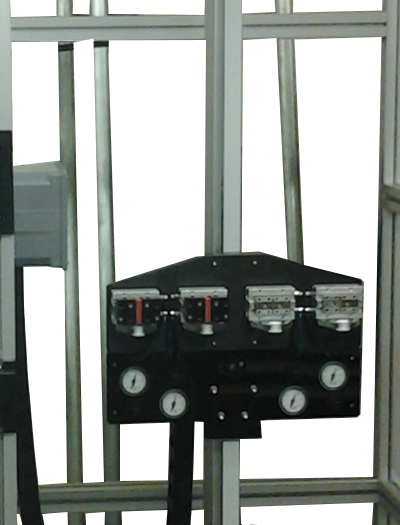

  • Parts can be pulled using a stripper tool, or a silicone gripper stiction method which avoids damage to the unit
  • Drives: Pneumatic, Servo or DC

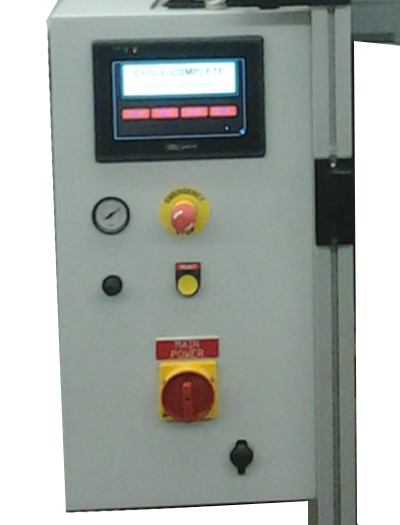

  • Controls: Push Button or HMI available
