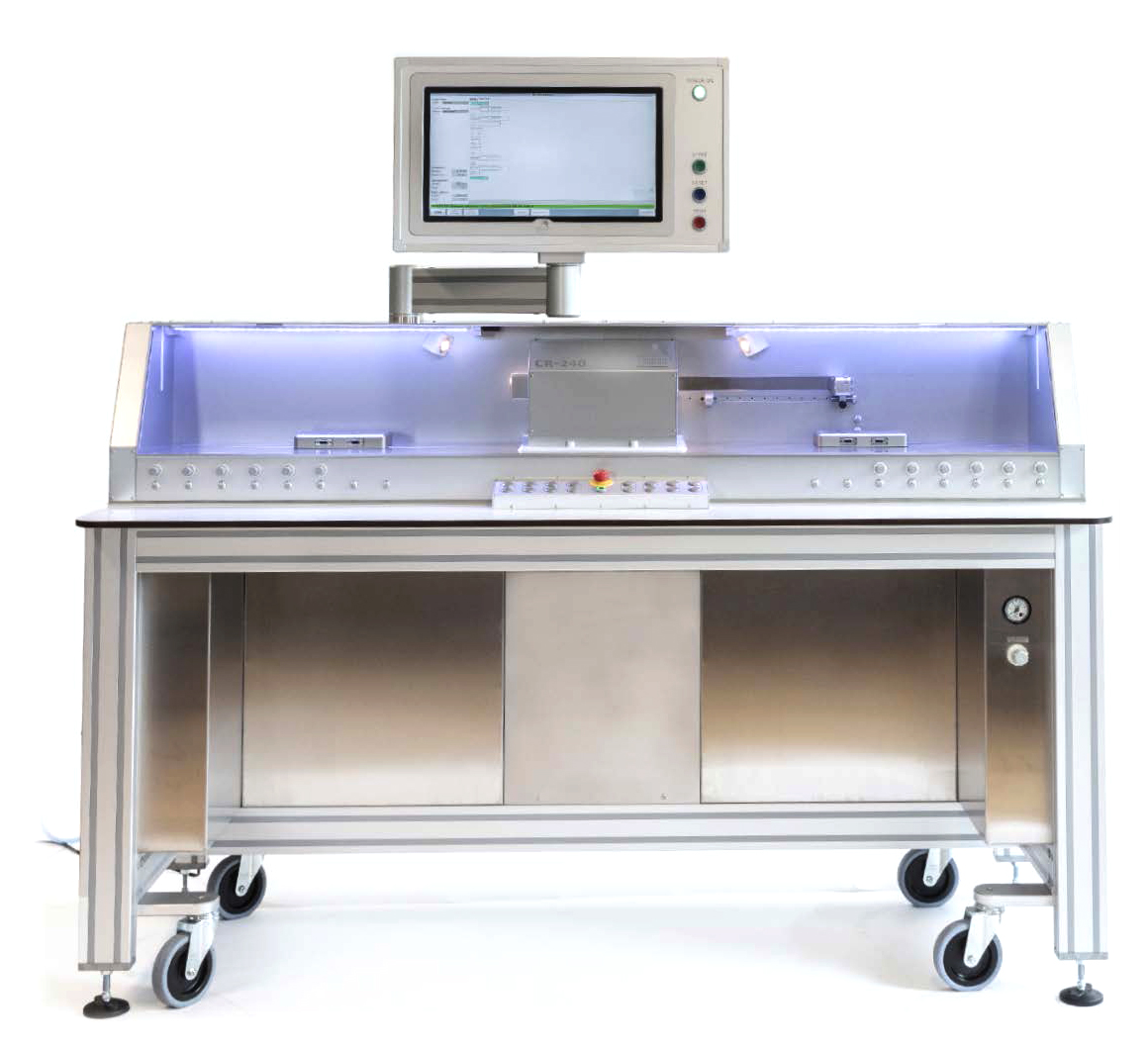

Flexible Stent Crimping Machine - CR-240-FSCP
Description
The CR-240-FSCP Flexible Stent Crimping Platform is developed for the crimping and transfer on or into the delivery system. Both balloon expandable and self- expandable stents up to 220 mm length can be handled.
Specifications
- Flexible Process Interface
- Servo controlled stent crimping head with Zero Gap
technology - Quick exchangeable crimping head
- 2 platforms for customized parts on holding and pushing
stents and mandrels - The CR-240-FSCP is built with a very high-quality benchmark
resulting in a stable and robust design with minimal cost of
ownership. - The CR-240-FSCP stent crimper can be easily calibrated using
the one-point automatic diameter calibration function built into
the system. Calibration in seconds. - Large 19” full color touch screen user interface for easy overview
of the machine behavior and managing of the FPI
Technical Specs
Stent crimping length | 240 mm quick exchange crimphead |
Stent type | All stent types (except DES) |
Maximum diameter | 36 mm (optionally larger sizes possible) |
Heating / Cooling | Optional to -20C / +90C |
Minimum closing diameter | 0.1 mm (software limit) |
Crimp head control | Servo controlled position / force |
Diameter accuracy | +/- 0.02 mm @ 100 N |
Maximum crimp force | 1250 N radial. Dynamic Diameter Compensation (DDC) |
Crimping speeds | 0.1 mm/s – 10 mm/s |
Maximum transfer force | +/- 500 N with loadcell measurement |
Platform connections | 8x air connection (6 mono stable valves and 2 servo valves)+ 3x input (24VDC) + 3x output (24VDC) |
GUI | 19” colour touch panel |
Control software | Flexible Process Interface (FPI) software for your own cycle development. (This MPT Europe BV designed software is also used on the BFM series balloon forming machines) Real time graphs with zoom options:
|
Ethernet | 2x |
USB | 4x |
Required air pressure | 7 bar minimum |
Power supply | 115 / 240 VAC / 0.5 kW |
Safety systems | Light curtain with intuitive operator feedback system |
