PP400: Automated Pad Printing System

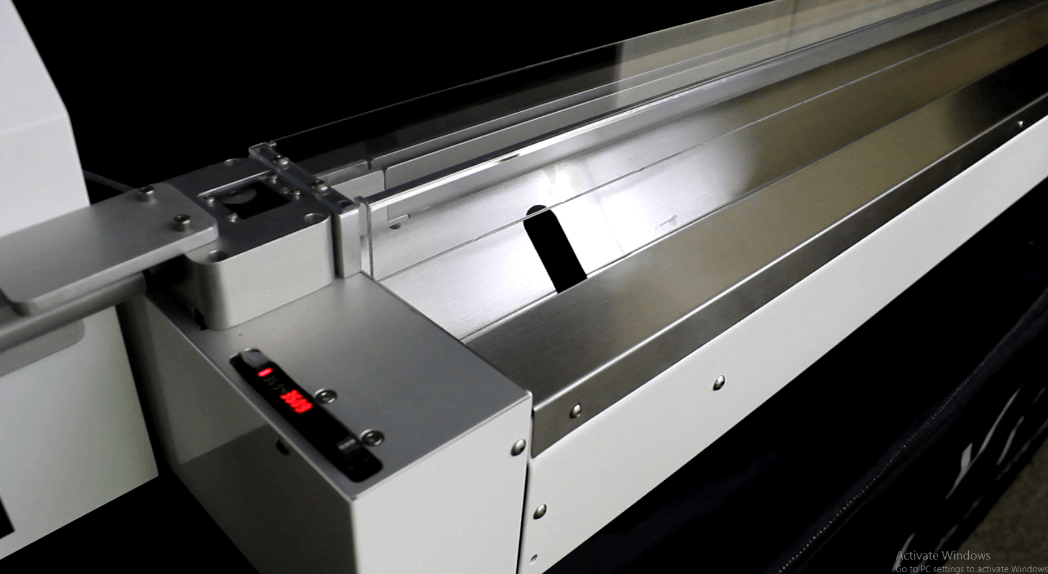

SYNEO’s PP400 Automated Pad Printing System integrates the core functionality of SYNEO’s Accu-Feed, Accu-Test and Accu-Bin product families with the pad printing capabilities of an Autotran AT-360 Servo Pad Printer.
The PP400’s feeding and binning system creates opportunities for autonomous feeding into the printing process as well as pass/fail inspection diverting systems, collaborative robot relationships, and injection molding pin mounting applications while the PP400’s vision inspection system allows for quality assessments of holes, marker bands, tip profiles and printed text or feature verification.

More Information

Key Features

  • Automated, precise picking and feeding of wire, metal and plastic tubing and rods
  • Programmable print recipe functionality for location and tube sizing
  • Multiple artworks per cliché with no requirement for manual print pad movement or part holding nest
  • Smearing and smudging on catheter fixture is eliminated via ink tack dwell system
  • Automated vision inspection system and pass-fail part diverting capabilities
  • Wrenchless adjustments of print pads and fixtures
  • Part Size Memory
  • Automatic parameter calculations by French or diameter size


  • Pebax, PVC, Pellethane, PEEK, Polyimide and others
  • Straight lengths (stick form) of Polymer Tubing
  • Straight lengths (stick form) Nitinol and stainless steel wire


  • 120-230 VAC, 50-60 HZ
  • Ink Cup size up to 130mm
  • Up to 80cm printing (standard dimension)

Pre and Post Treatments

  • Corona Treating
  • Flaming
  • UV Curing
  • Plasma Treating


  • Greater Throughput
  • Increased Flexibility
  • Competitive Advantage
  • Greater Profitability
