Accu-Feed DFS

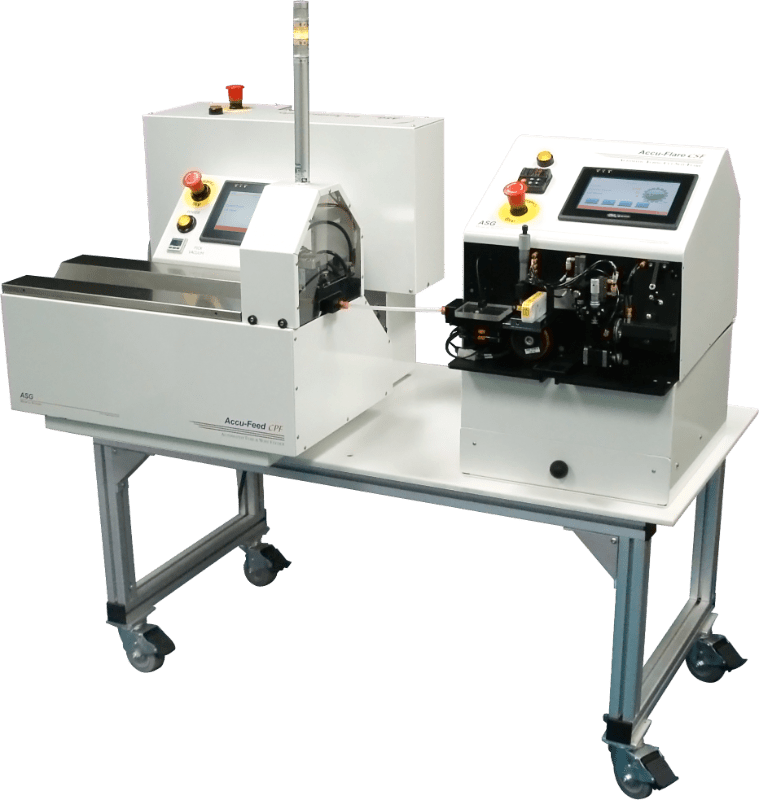

The Dual-Feed system consists of two feeding processes mounted onto a high-quality, aluminum extruded, anodized rotary stand. This catheter manufacturing feeding machine provides precise alignment for variable cutting production, whether stick feeding an SYNEO Accu-Cut machine from an Accu-Feed CPF or spool feeding an Accu-Cut machine from an Accu-Feed LTD or HPD.

Key Features

  • Full-color, touch-screen HMI.
  • Recipe-driven software and quick change snap-in tooling for fast changeovers.
  • Footprint minimization while enhancing material form handling capability.
  • Integration of quick-change spool dereeler (LTD or HPD) and pick feeder (110 or CPF) into a single work cell.
  • Wide range of automation options including part-shuffling, feed gap control for high diameter-mix scenarios, and static reduction system.
  • This stick and spool tubing feeder has in-line downstream integration capability with SYNEO equipment and/or 3rd party equipment including extrusion, cutting, grinding, drilling/punching, pad printing, media-blasting, and laser marking processes.

Specifications

  • Power: 100-230 VAC, 50/60 Hz, 1A
  • Air requirements: 30-100 PSI, 1-5 CFM
  • Dimensions (W x D x H): 24″ x 20″ x 30″
  • Weight (LTD + CPF configuration): 40 lbs.
  • Shipping weight (LTD + CPF configuration): 60 lbs.
  • HMI: 7″ high-resolution color touchscreen
  • CE-certified model available

Materials

  • Straight lengths (stick form) of polymer tubing.
  • Straight lengths (stick form) Nitinol and stainless steel wire.
  • Straight lengths (stick form) of Nitinol or stainless steel coils.
